AD Controller | Hantas

Product Code :
Brand: HANTAS
Availability: Đặt trước
Contact

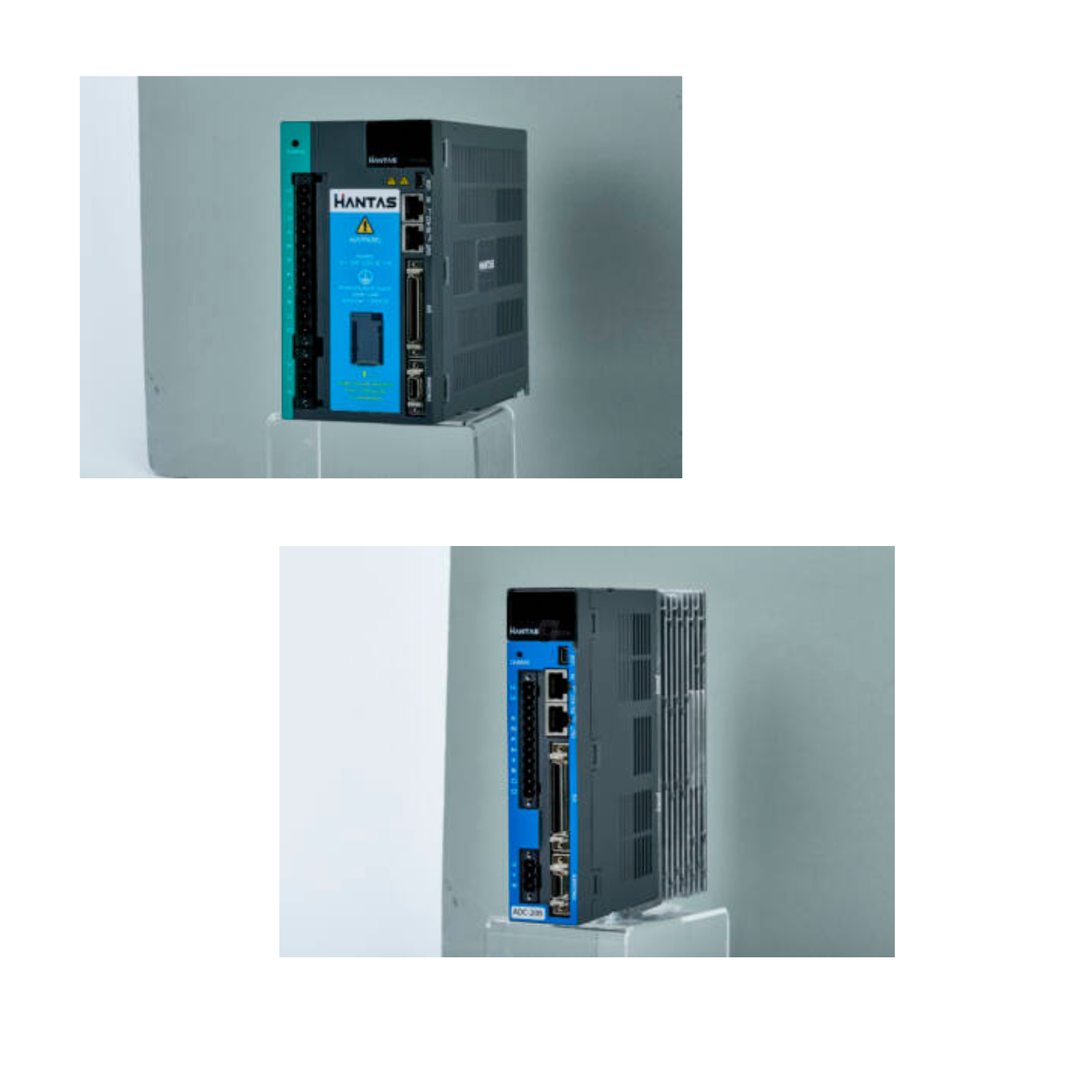

AD controller is a reliable robotic spindle system engineered for accurate and repeatable torque control.
It is optimized for automation line, it can see the effects of improving productivity and reducing labor costs.
When used with robots such as SCARA, accurate and difficult to assemble sections can also be assembled.
PC or PLC can control torque, speed control and tightening results monitoring by communication.

Controller specification

Model ADC-100 ADC-200 ADC-400 ADC-1K ADC-2K
Input power  AC200-230V, 50/60Hz single phase AC200-230V 3 phase
Rated Output  1.4A  1.7A   3.0A  6.75A  13.5A
Temperature  Operation : 0-50°C, Storage : -20~65°C
Humidity  90% RH
 Protection  Over current, over load, over heat, over & low voltage
COM port  RS-422 (Modbus-RTU) / Max 200m, USB 2.0 (mini B)
Protocol  Modbus RTU
 No. of program  15 Presets
 Auto paring  Auto detection of the spindle when power ON of the drive

Accessories

ParaMon Touch – AD



[Main features]

  • Parameter setting & monitoring same as ParaMon PC software
  • Data auto saving in file system. One file a day / monthly folder, yearly folder
  • Available for ADC controller
  • 7” TFT LCD with touch screen
  • Auto fastening data output by RS232
  • Remote operation of the tool

[Specification]

  Description  Remark
 Power supply  AC100-240V~ 50/60Hz, 1.5A  AC-DC adapter SW24
 Input power  DC24V, 1A
 Size  202(W) 154 (H) 40 (D)
 Weight  0.55 kg
Display  7” TFT LCD with touch screen  800 x 480 px
 COM port 2 - RS232C (MDC & Barcode scanner)
2 - RS422 (ADC – IN & OUT)
1 - USB1 - Ethernet

 Memory 8 GB SD card. Auto fastening data saving.
 Auto file and folder creating
 One file a day Monthly and yearly folder
